Mobile LED Screen Hire - 7m x 4m Trailer Display
A 28-square-metre outdoor display for live events, advertising and shared viewing.
A bigger view
One mobile display. Built around your event.
Heath Technologies provides a 7m x 4m trailer-mounted outdoor LED screen for festivals, concerts, sporting events, community events and advertising across mainland UK. Its 28-square-metre display shows live camera relay, video playback, sponsor content and event information.
We handle delivery and setup from our Midlands base, with optional sound, generator power and a screen technician. Use your own agreed HDMI source for straightforward playback, or build a managed live-video package with us.
- 28m²
- 7m wide x 4m high display
- 317 inches
- 34x the picture area of a standard 55-inch TV
- Up to 7.2m
- To the top of the screen, with adjustable height
- Easy setup
- Delivered and set up by our team
Your event, your package
Your LED screen quote
A 7m x 4m LED screen, with the equipment and support your event needs.
An integrated mobile display
Why hire a trailer-mounted LED screen?
The screen travels as one integrated system, with fewer separate display components to build at the venue than a conventional modular installation. Our team handles delivery, positioning and setup before handing over your agreed source or running the programme with a screen tech.
Adjustable height and screen orientation help us plan the display around your viewing area. Suitable vehicle access, stabiliser space and ground conditions are checked for the site; setup times depend on the location and equipment package.
Combine the screen with trailer stage hireThe equipment and site plan
7m x 4m mobile LED screen specifications
A practical starting point for your production brief. We confirm the final site layout, connections and equipment requirements before delivery.
- Display
- 7m wide x 4m high; 28 square metres
- Approximate diagonal
- 317 inches; around 34x the picture area of a 55-inch TV
- Working height
- Adjustable, with the top of the screen up to approximately 7.2m above ground, subject to the site and operating limits
- Video sources
- Agreed HDMI playback; SDI through suitable event processing. Source format, audio routing and cable runs are confirmed in advance
- Power planning
- Dedicated 32A three-phase supply; final capacity and distribution agreed for the package. Generator available as an extra
- Transport reference
- Approximately 7.2m long including drawbar, 2.1m wide and 2.9m high. Turning space and route clearance need separate checks
- Deployed trailer reference
- Approximately 7.9m x 4.1m before additional working clearance and audience separation. This is not a minimum safe site area
- Screen operation
- Outdoor display for daytime and evening use, within the approved weather, ground and equipment limits
Trailer dimensions are approximate planning references, not a final access drawing. Share your site plan for confirmation.
Different content, one large display
LED screen hire for events, advertising and live viewing
Sporting events and fan zones
Create a shared viewing area for football, rugby and other live sport, with optional commentary PA and power. Agree your licensed feed and connection before the programme starts.
Big screen hire for sporting eventsAdvertising and event information
Use the mobile video wall for sponsor advertising, corporate promotions and showground content. Timetables, site maps and visitor announcements keep the display useful throughout the day, alongside your essential site signage.
Discuss an advertising or information screenOpen-air cinema
Build a film programme around a large outdoor LED display for daytime or evening viewing. Our separate cinema package brings together the screen, sound, generator, playback and technician.
Complete outdoor cinema hireConnect your laptop by HDMI
For straightforward playback, we configure the screen and show you how to connect your compatible laptop or media player. Run your own videos, slides or advertising playlist after handover.
Send the source details before the event. We agree the output format, audio connection and cable route; SDI feeds require suitable processing within the agreed package.
Optional screen tech for the live programme
Add a technician to manage live camera switching, multiple sources, video playback and timed sponsor content. We can also agree a handover to your experienced production team.
The technician option covers content operation during the event. Our delivery team handles the trailer setup in every standard screen hire.
Build your LED screen packageAccess, power and safe positioning
Access and ground
Share vehicle restrictions, gates, turning space and a site plan. We need firm, level ground, stabiliser clearance and a separated working area.
Audience and overhead space
Agree sightlines and viewing distances alongside overhead obstacles, public routes and the screen's working height.
Power and cable routes
Confirm the supply and distribution plan, then protect video, audio and power routes around working and public areas. A generator can be quoted.
Weather and contingencies
Operating limits and site conditions guide the deployment. Wind or severe weather may require a change or pause, so discuss your contingency plan in advance.
Bring your audience closer
Live camera feeds and video production

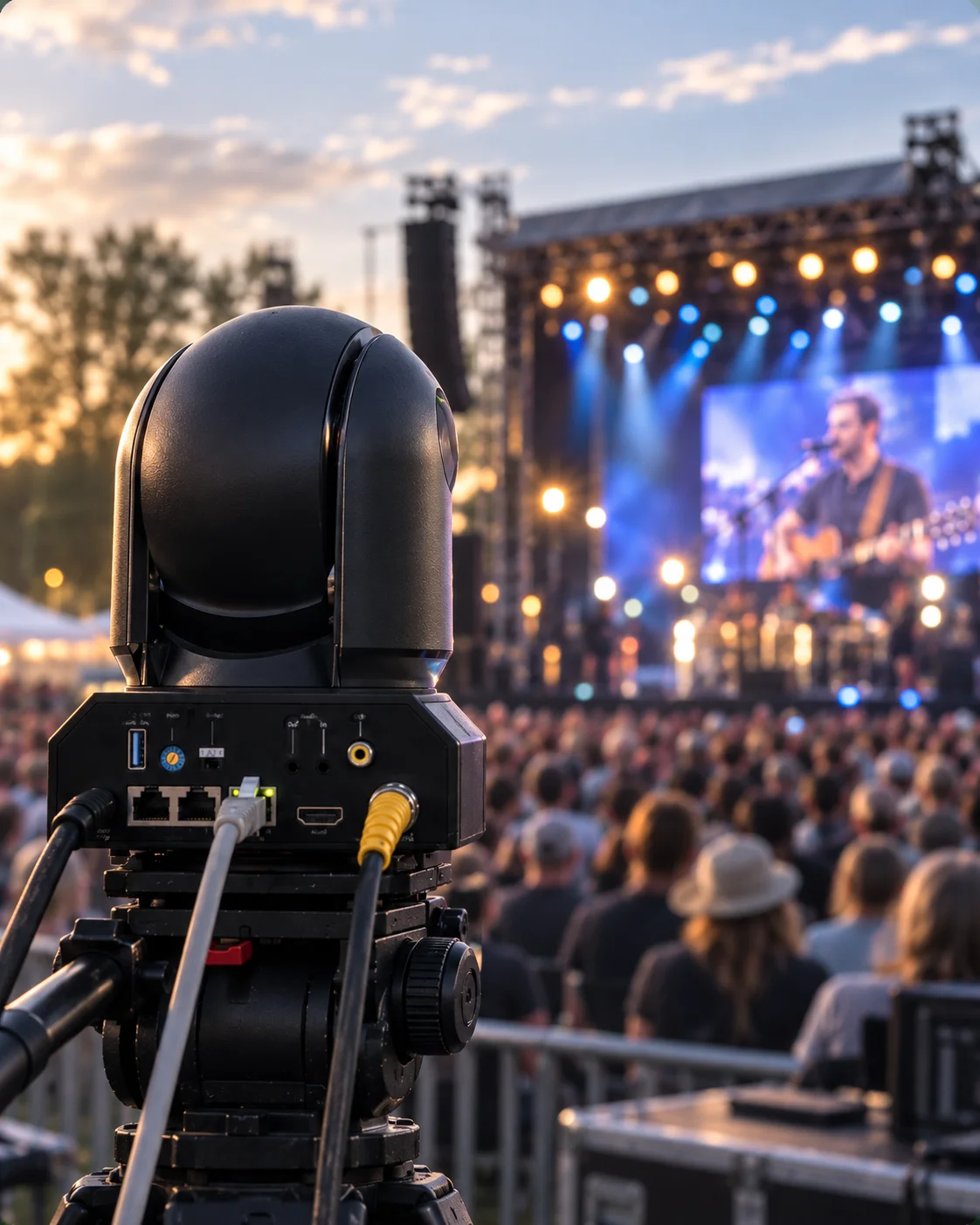

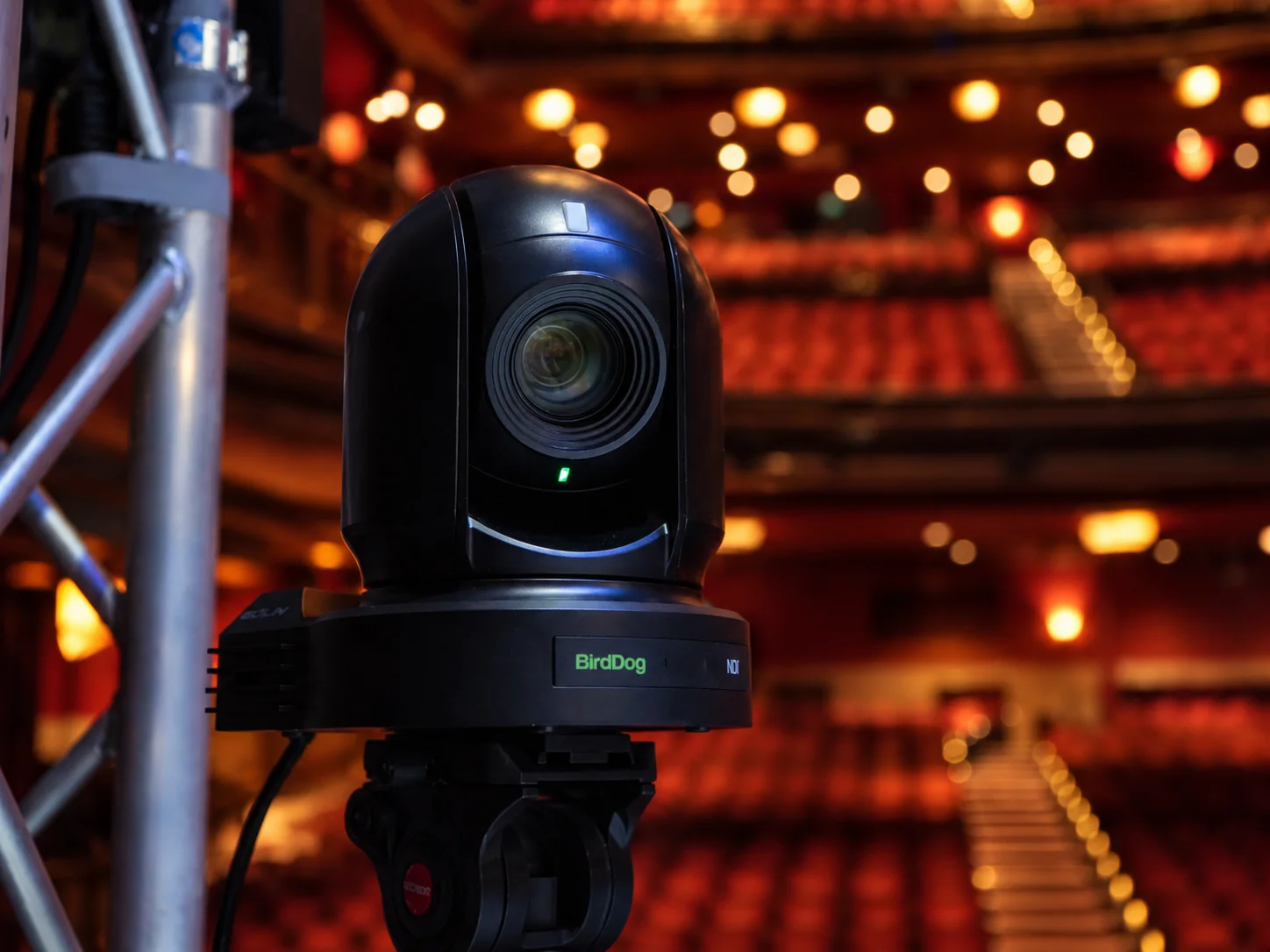

Live camera relay, also called IMAG, shows performer close-ups to people further back. Our optional three-camera BirdDog P200 PTZ package uses remotely controlled cameras, with positions and switching agreed for your show. Add a screen tech for managed playback and live switching, or integrate with your experienced production team.
Camera positions, weather protection and signal routes are planned for each site.
Add live camerasSound for your audience
Clear sound, from front to back.

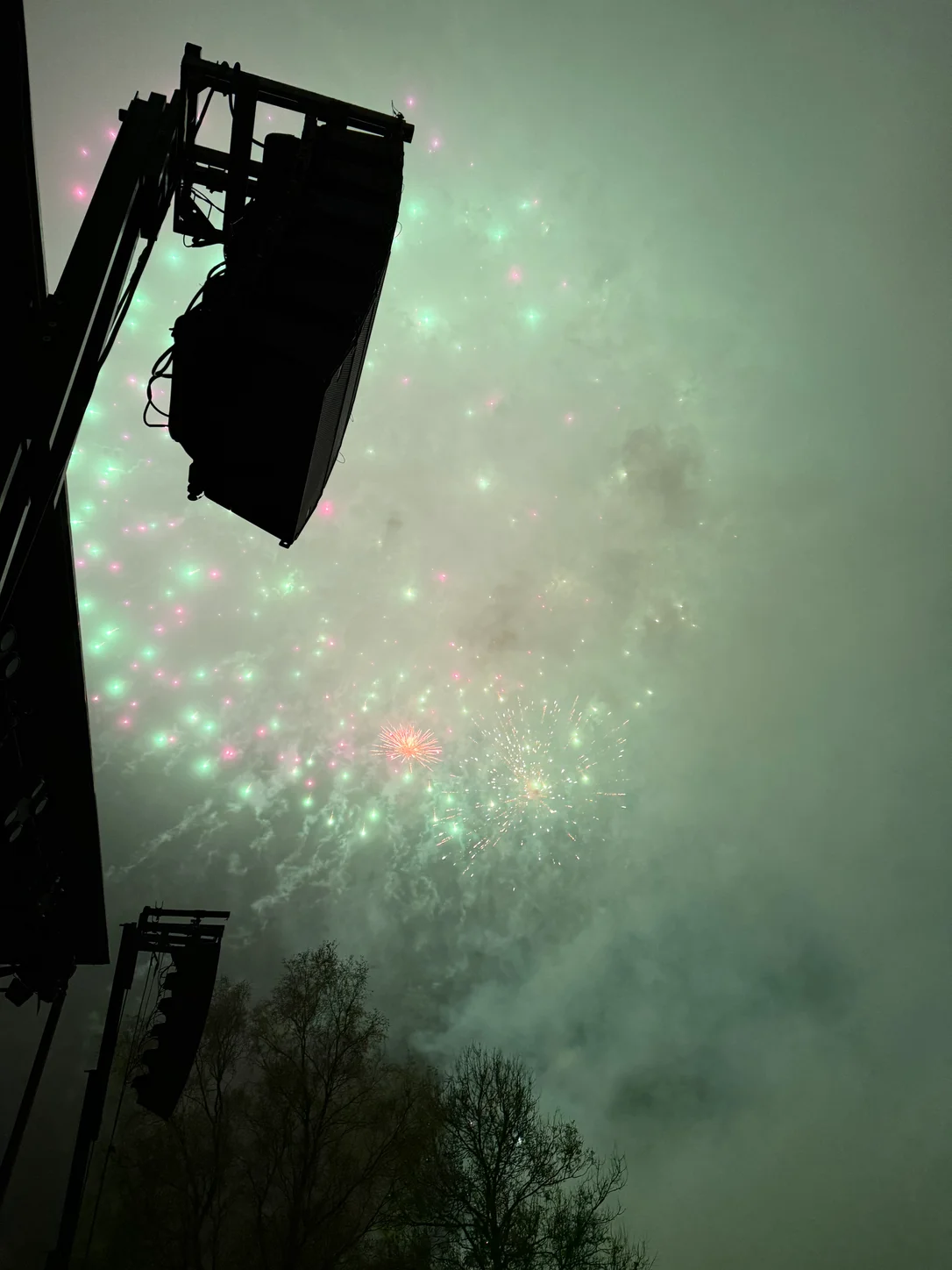

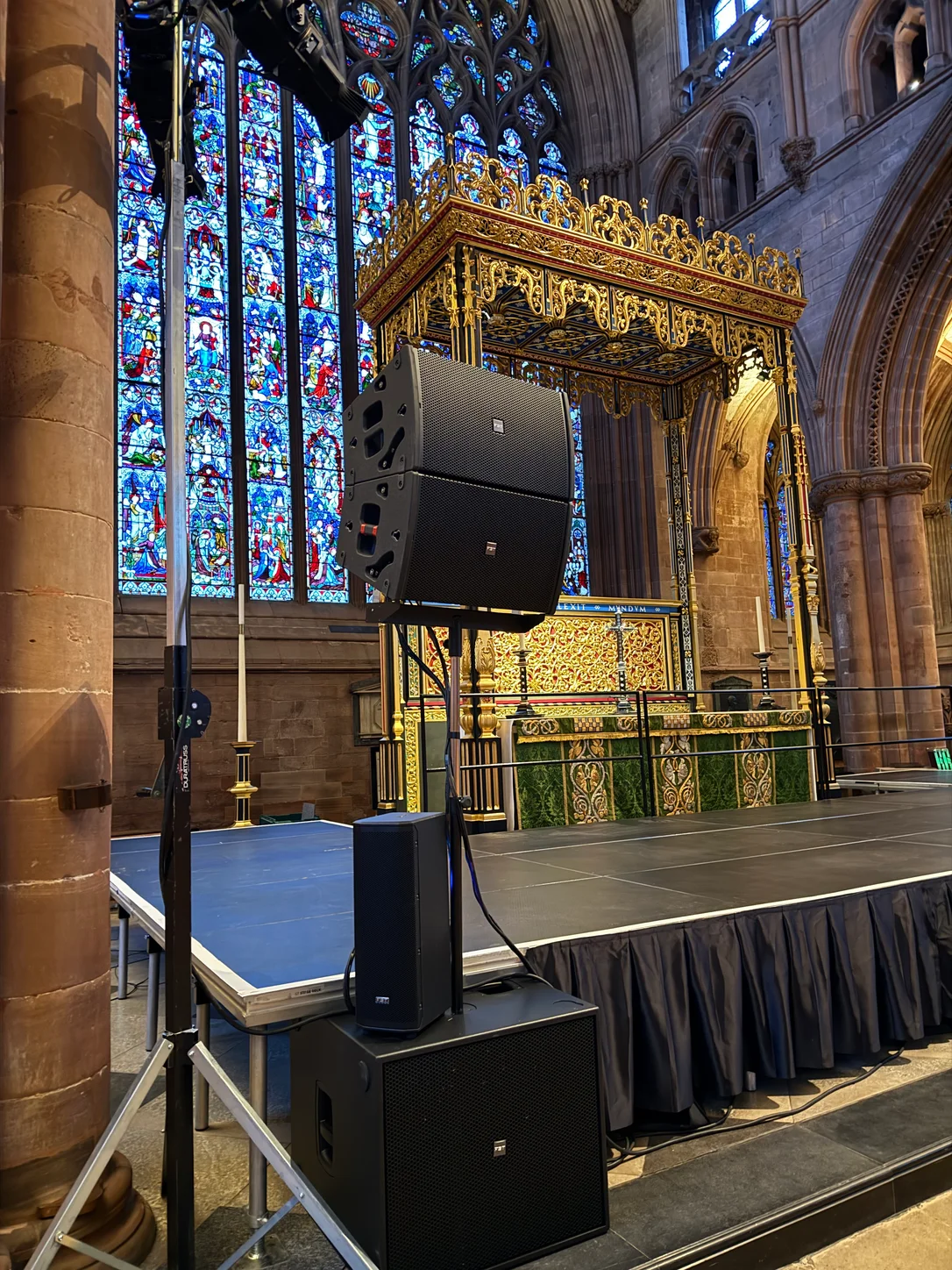

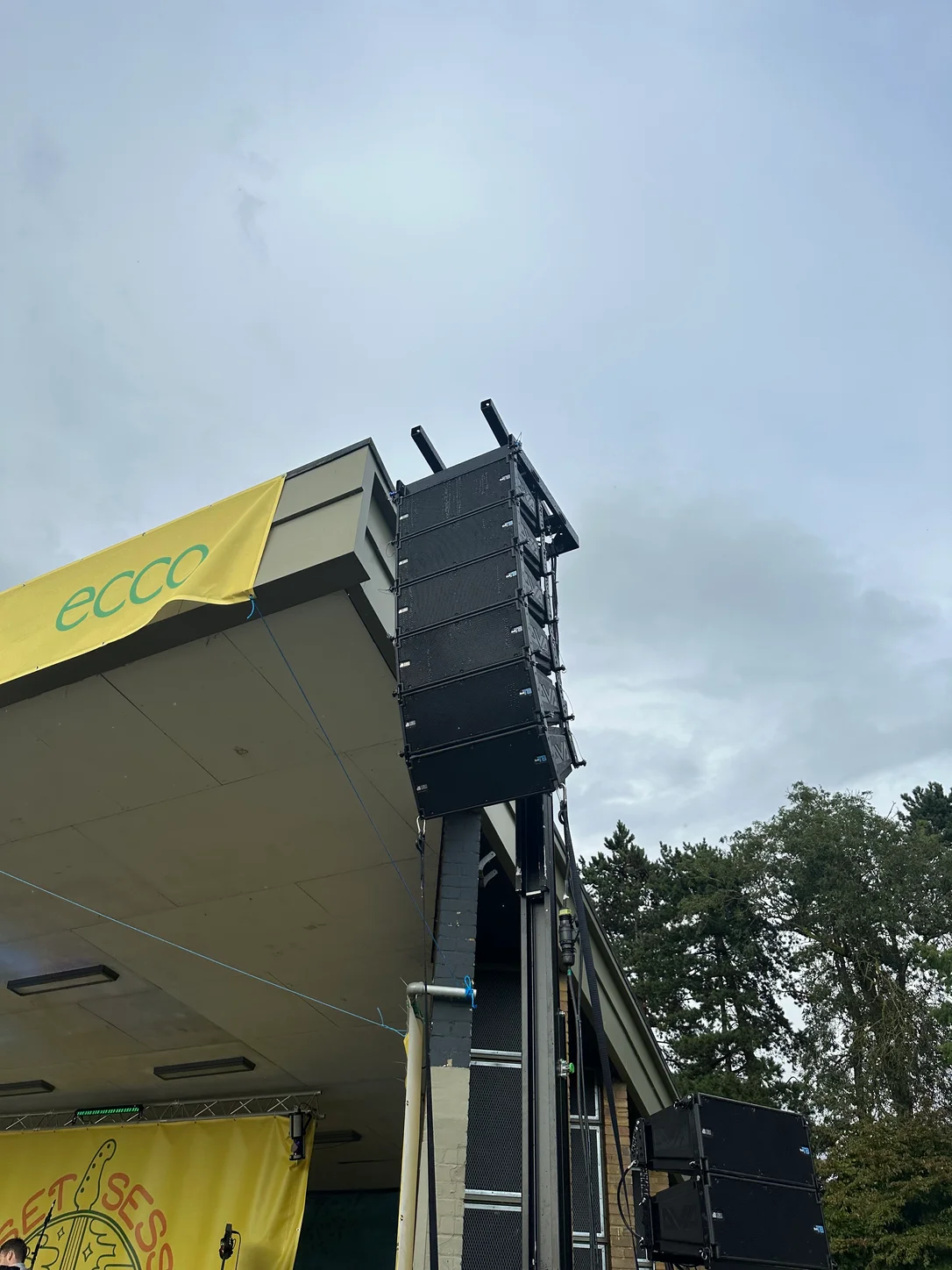

Choose compact speakers for background sound, a medium floor-stack system for a more focused audience, or flown PA for wider coverage. We match the layout to your site and programme, from commentary and presentations to a full event soundtrack.
LED screen hire questions
How large is the LED screen?
The display is 7m wide and 4m high: 28 square metres, with an approximately 317-inch diagonal. Its picture area is around 34 times that of a standard 55-inch, 16:9 TV. The top can reach approximately 7.2m, with the working height chosen for your site and audience.
How is a mobile LED trailer different from a modular video wall?
The display travels on an integrated trailer and is raised into position on site. A conventional modular wall is assembled from separate cabinets onto a suitable structure. Our trailer needs vehicle access and stabiliser space, but reduces the separate display construction required at the venue.
Can the screen be used during the day?
Yes. The outdoor LED display can be used for daytime and evening events. We plan its position, viewing distance and content around the ambient light and audience rather than relying on darkness for projection.
Can we connect our own laptop?
Yes, for agreed HDMI playback after our setup and handover. Send the laptop or media-player details in advance so we can check the video format, audio route and cable length. SDI feeds can be accommodated through suitable processing agreed for the event.
Can you provide live camera feeds?
Our optional live camera package uses three BirdDog P200 remotely controlled PTZ cameras. Live camera relay, also called IMAG, puts close-ups of performers on the screen for people further back. Agree camera positions, switching and operation with us before booking.
Is a screen technician required?
A dedicated screen tech is optional for straightforward, agreed HDMI playback after handover. Add a tech for multiple sources, live switching, timed content or a managed programme. Our team always handles the trailer positioning and setup.
Can you provide sound and a generator?
Yes. The calculator offers speaker systems, a generator and a screen tech as extras. Choose the equipment you need and describe any additional AV requirements so we can check the package against your site and programme.
What power does the screen require?
Use a dedicated 32A three-phase supply as the planning requirement. The final connection, capacity, distribution and cable routes are agreed for your equipment package before delivery. A generator can be quoted where suitable mains power is unavailable.
How much space does the trailer need?
Allow for vehicle access, firm level ground, deployed stabilisers and a separated working area. The reference trailer footprint is approximately 7.9m by 4.1m when deployed; this is not the full safety clearance or turning space. Send a site plan so we can agree a suitable layout.
Can the screen show advertising and event information?
Yes. Use approved sponsor graphics, promotional videos, timetables, site maps and organiser announcements. We agree the content format and viewing position; the screen supports rather than replaces essential site safety signs.
Do you deliver throughout mainland UK?
We deliver across mainland England, Scotland and Wales from our Midlands base. Enter your event postcode for logistics pricing, then tell us about access restrictions and the planned programme.
How is the screen hire price calculated?
Enter your dates, times and delivery postcode, then choose your equipment extras. The guide price accounts for the hire period, delivery, setup and collection. Additional AV or complex site requirements need a tailored quotation. A price or quotation does not reserve the date; booking terms and the agreed deposit apply.
What happens if the weather is unsuitable?
The screen operates within its approved equipment and site limits. Wind, ground conditions or severe weather can require a lower working height, a pause or a change to the plan. Discuss contingencies with us before the event; operation in every weather condition cannot be guaranteed.
Mainland UK LED screen hire
Based in the Midlands, we deliver mobile LED screen hire across mainland England, Scotland and Wales, including events in Derby and the wider region.
